Nickel-Plated Brass Spiral Cable Gland, IP68 Anti-Bend Strain Relief

The nickel-plated brass spiral cable gland locks the cable and keeps it from kinking at the entry point. A flexible metal spiral acts as a strain relief and bend limiter, so vibration, pulling, and tight routing do not crack the jacket or loosen the seal.

The body is nickel-plated brass for corrosion resistance and a clean metal finish. Inside, a flame-retardant nylon core (UL94-V2) grips the cable, while a silicone rubber seal and a nitrile or silicone waterproof ring hold an IP68 seal. Rated from -40°C to 100°C, and up to 120°C for short periods. Gray and black are standard; other colors can be made to order.

Use it on control cabinets, motors, sensors, machinery, outdoor equipment, and automation lines wherever the cable must enter at an angle or stay protected in motion.

Share :

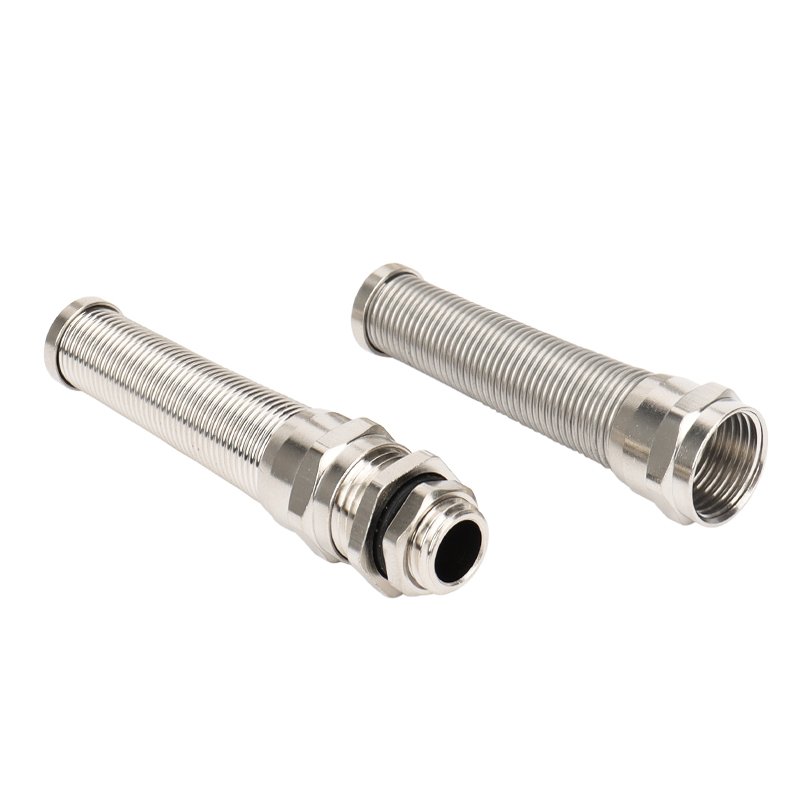

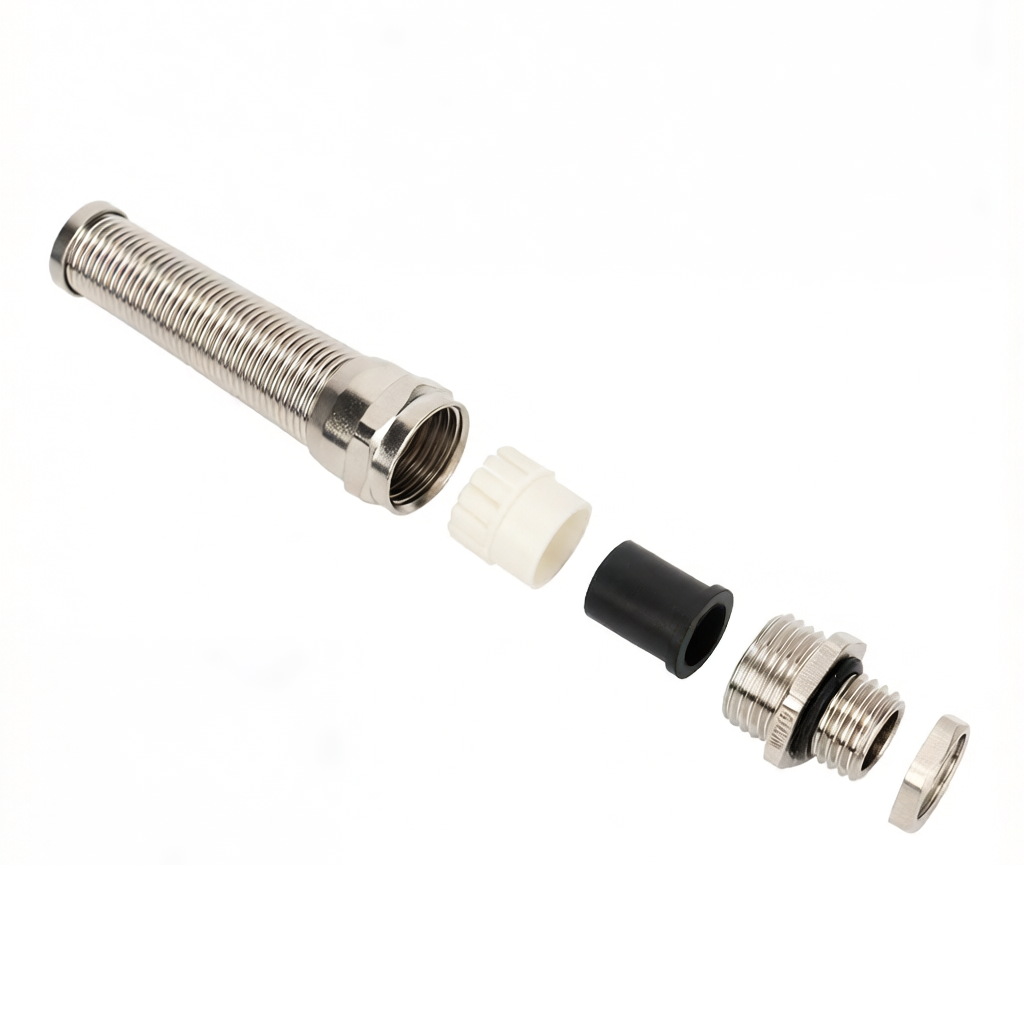

Nickel-Plated Brass Spiral Cable Gland

A metric-style cable gland with an integrated spiral spring. It seals the enclosure and stops the cable from bending sharply right at the thread. The spiral spreads the flex along its length, which cuts fatigue on the cable jacket in vibrating or frequently moved equipment.

Why this gland

  • Anti-bend spiral spring protects the cable from sharp folds and pull-out stress.
  • Nickel-plated brass body resists corrosion and suits industrial and outdoor use.
  • IP68 protection when installed with the matching seal and tightened to spec.
  • Flame-retardant nylon inner core, UL94-V2.
  • Silicone rubber seal; waterproof ring in nitrile rubber (NBR), silicone rubber, or similar.
  • Wide temperature range: -40°C to 100°C continuous, 120°C for short exposure.
  • Gray and black supplied as standard. Other colors available on request.
  • Multiple thread sizes can be supplied to order.

Specifications

Item Specification
Type Spiral cable gland / anti-bending cable gland
Body material Nickel-plated brass
Inner core Nylon, flame retardant UL94-V2
Seal Silicone rubber
Waterproof ring Nitrile rubber, silicone rubber, or equivalent
Protection degree IP68
Temperature -40°C to 100°C; short time to 120°C
Color Gray, black; other colors custom

Typical applications

  • Electrical control cabinets and junction boxes
  • Motors, pumps, and gear drives
  • Sensors, instruments, and automation equipment
  • Outdoor and wash-down machinery
  • Lighting, solar, and equipment that needs a sealed cable entry with bend protection

Ordering notes

Confirm thread size, cable outer diameter, and color when you order. Sealing performance depends on the correct cable range and proper tightening. IP68 applies to a correctly matched and installed gland.
