Product Overview

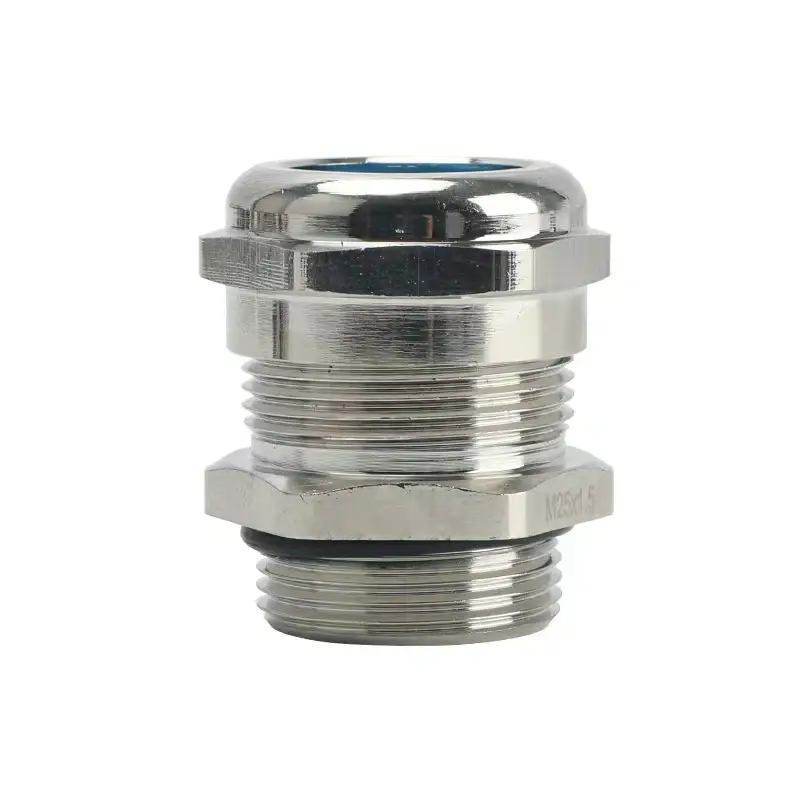

Introducing our NEW ENERGY Series Shielded (Anti-Magnetic Wave) Cable Gland. Specially designed to meet the rigorous demands of modern electric vehicles and advanced automation technology, this nickel-plated brass fitting seamlessly combines exceptional Electromagnetic Compatibility (EMC/EMI) shielding performance with ultimate environmental sealing. Its robust, vibration-resistant design ensures a secure connection, prevents cable displacement, and delivers long-lasting IP68 water and dust protection—making it the ideal choice for high-performance shielded applications.
Key Features
-

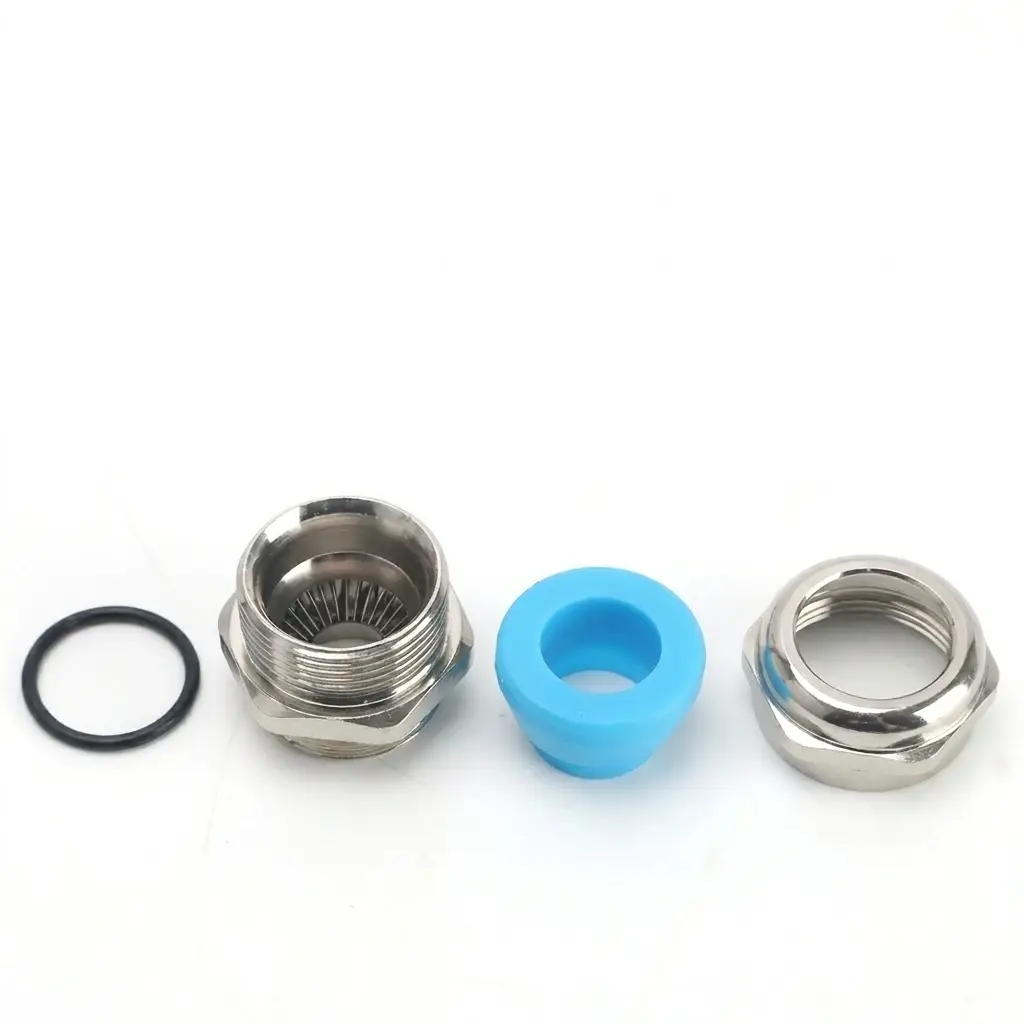

Certified EMC/EMI Shielding: Features an integrated stainless steel internal shielding spring (contact iris) that effectively blocks electromagnetic interference (anti-magnetic wave), which is critical for sensitive new energy electronics.
-
Rugged Anti-Loosening Design: Utilizes an optimized clamping claw structure that prevents cable slippage and pull-out, even in high-vibration applications.
-
IP68 High-Grade Environmental Sealing: Equipped with high-performance silicone seals (O-ring and sealing washer) that offer superior anti-aging properties, providing reliable, leak-proof protection against water and dust ingress.
-
Heavy-Duty Metallic Construction: Manufactured in standard nickel-plated brass, as well as SS304 or SS316 stainless steel, ensuring an extended service life and exceptional corrosion resistance.
-
Broad Size Range: Available in a full selection of Metric threads from M20 to M63 (with PG and NPT threads available upon request). See the specification table below for complete catalog details.
-
Customizable Solutions: Factory-direct pricing for OEM/ODM orders with low MOQ requirements. Custom thread lengths or specialized cable clamping ranges are available upon request.
Applications
This series of shielded EMC cable glands is optimized for critical environments requiring uncompromising EMC protection:
-
New Energy Electric Vehicles (EV): Inverters, battery packs, electric motors, and EV charging infrastructure where EMI suppression is essential.
-
Industrial Automation & Robotics: Shielding sensitive control and signal cables in dynamic automation lines.
-
High-Frequency Medical Equipment: Ensuring precise signal transmission free from external electromagnetic noise.
-
Telecommunications Infrastructure: Connecting and shielding high-speed data transmission lines and control cabinets.
Product FAQs
Q1: Why do New Energy Vehicles (EVs) require shielded (EMC) cable glands?
A: Electric vehicles utilize high-power electric motors and high-voltage battery systems that generate significant electromagnetic interference (EMI) or magnetic waves. To ensure sensitive low-voltage sensors, electronic control units (ECUs), and communication lines operate smoothly without interference, the cables must be shielded. A shielded cable gland seamlessly connects the cable’s braid/shielding layer to the grounded metal enclosure, establishing a continuous 360-degree grounding path to suppress EMI.
Q2: How effective is your anti-loosening design in high-vibration environments?
A: Highly effective. Unlike standard cable glands that rely solely on thread tension, our shielded cable glands feature an optimized clamping claw mechanism. Once tightened, the internal claws grip a large surface area of the cable sheath with mechanical locking force. This robust construction prevents cable movement or connection loosening, even under the continuous vibration typical of EVs and heavy industrial machinery.
Q3: Which material option is best for long service life and optimal protection?
A: For highly corrosive or extreme environments (such as offshore marine or aggressive chemical facilities), we recommend 316L stainless steel (SS316L). However, for standard industrial applications, automotive infrastructure, and automation projects, our standard nickel-plated brass offers an outstanding balance of durability, corrosion resistance, and cost-effectiveness.
Q4: Can we customize the cable clamping range or specific thread lengths?
A: Yes. As a direct manufacturer, we support extensive technical OEM/ODM customization. We can supply dedicated internal seals to fit non-standard cable outer diameters or precision-machine extended threads to meet specific enclosure mounting requirements.
