Product Attributes
– Thread Size: M20×1.5 (Metric)
– Cable Range: 6–12 mm
– Protection Rating: IP68
– Material: Nickel-plated brass body with copper shielding spring
Product Overview

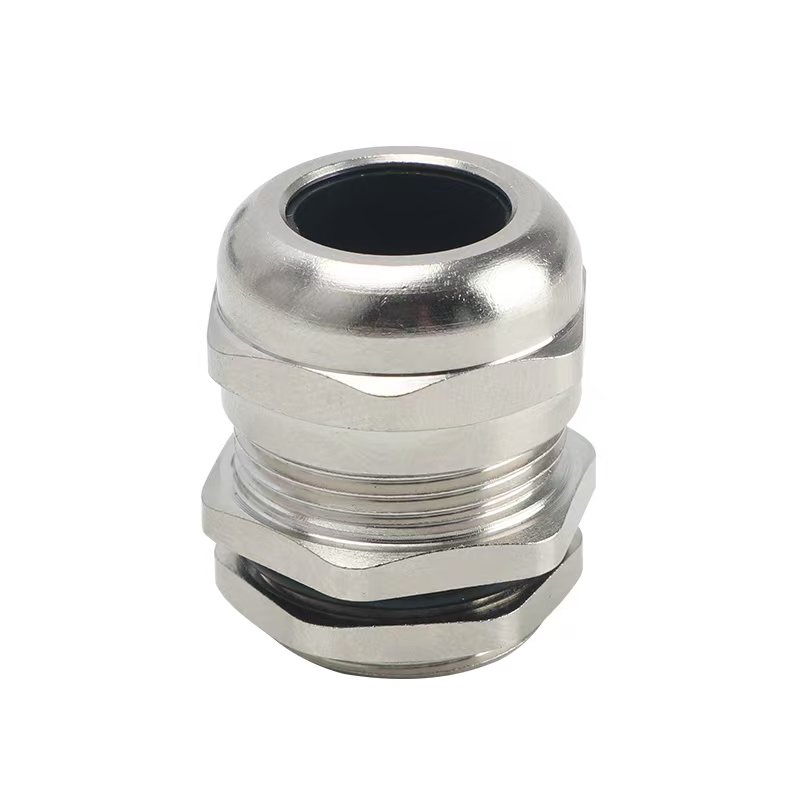

The EMC cable gland is engineered for secure cable entry and effective electromagnetic shielding in industrial electrical systems. It integrates mechanical strain relief with conductive shielding to maintain signal integrity in environments with electromagnetic interference.
Manufactured under the Xing Wei supply system, this product is designed for compatibility with shielded cables requiring reliable grounding continuity. The EMC cable gland structure ensures consistent contact between the cable shield and the connector body through a copper shielding spring.
The housing is constructed from nickel-plated brass, providing corrosion resistance and mechanical durability. Sealing components are available in multiple material options, including standard rubber and optional silicone or acid/alkali resistant variants, depending on environmental conditions.
This EMC cable gland is suitable for factory automation, control panels, and electrical enclosures where stable cable fixation and EMI control are required. Xing Wei operates as a manufacturer and supplier supporting OEM and ODM project requirements.
Key Features
– Integrated copper shielding spring ensures effective EMI grounding continuity
– IP68 sealing performance supports use in dust-tight and water-resistant applications
– Wide operating temperature range from -40°C to 100°C, with short-term tolerance up to 120°C
– Customizable temperature configurations available from -60°C to 220°C
– Multi-standard thread compatibility including Metric (M), PG, G (PF), and NPT
Applications
– Industrial automation control panels
– Electrical enclosures with shielded cable requirements
– Machinery systems exposed to electromagnetic interference
– Outdoor or harsh environment cable entry points
– OEM equipment manufacturing and system integration projects
Product FAQ
1. What cable size is compatible with this EMC cable gland?
This model supports cables with an outer diameter range of 6–12 mm.
2. What type of thread does this product use?
The specified model uses an M20×1.5 metric thread. Other thread standards such as PG, G (PF), and NPT are available.
3. What materials are used in the EMC cable gland construction?

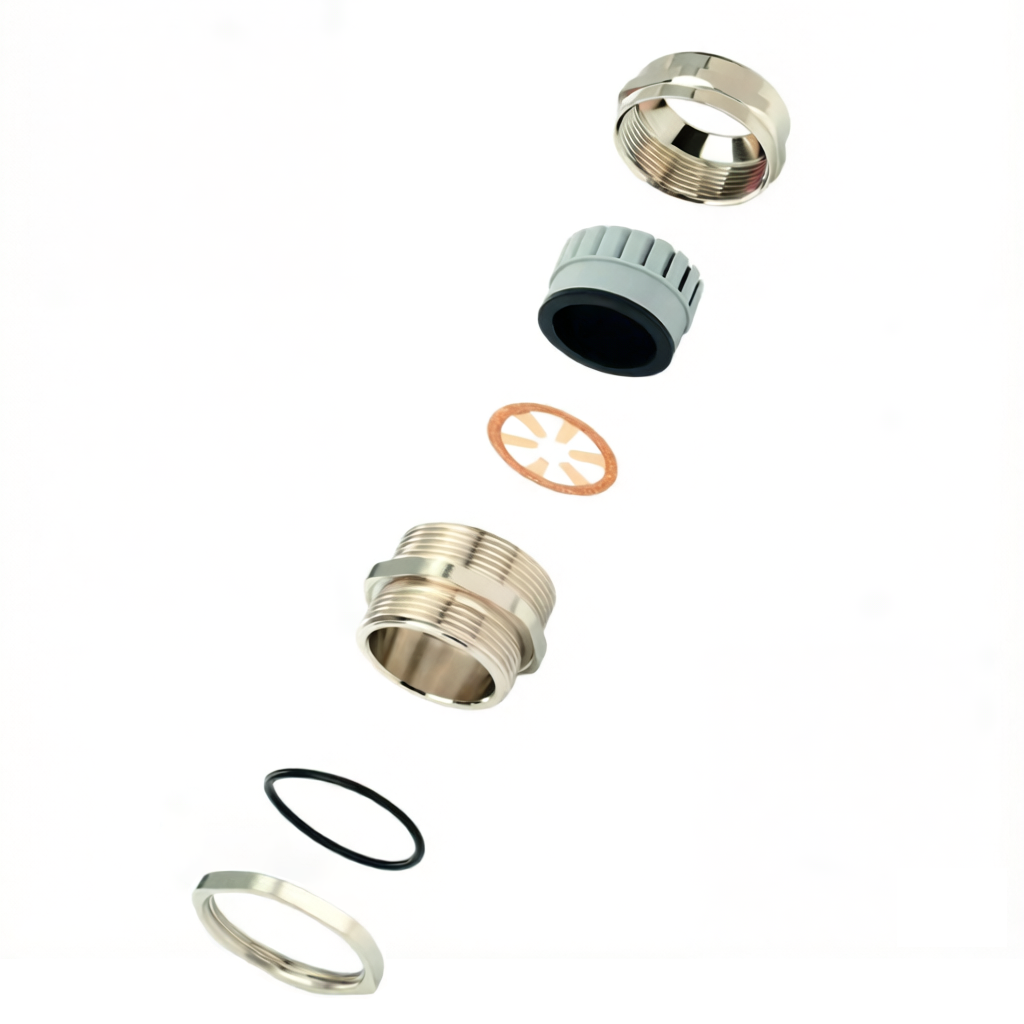

The body is nickel-plated brass, the shielding spring is copper, the seal is rubber (optional variants available), and clamping jaws are nylon PA66.
4. What is the protection rating of this cable gland?
The product is rated IP68, suitable for dust-tight and water-resistant applications.
5. Can this product be used in extreme temperature environments?
Standard operation is -40°C to 100°C, with short-term tolerance up to 120°C. Custom configurations can extend from -60°C to 220°C.
6. Does Xing Wei support customization or bulk supply?
Yes, Xing Wei operates as a factory, manufacturer, and supplier offering OEM and ODM services for project-based procurement.
