Product Overview

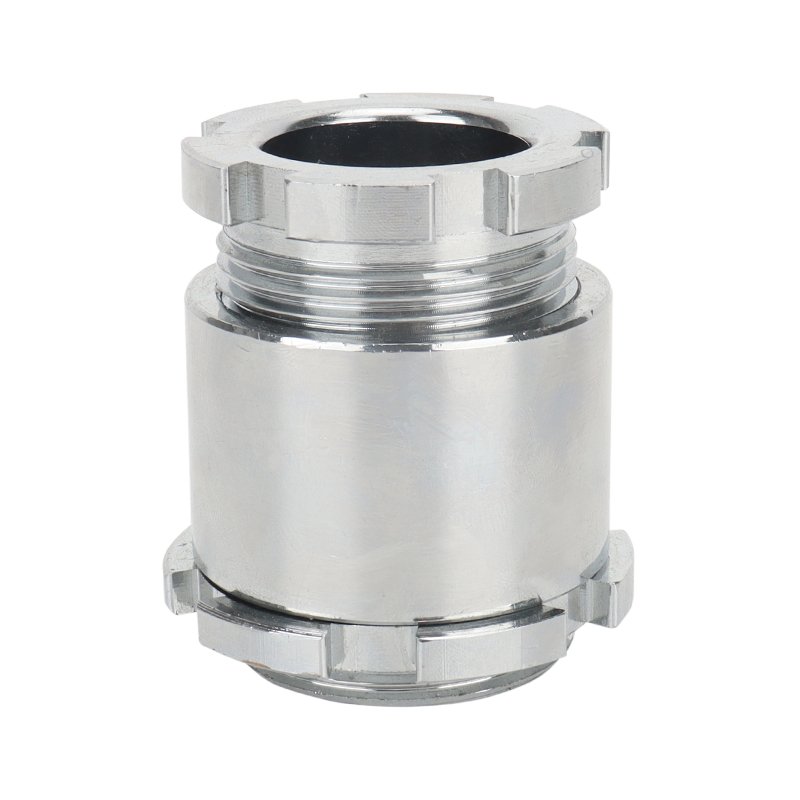

The JIS marine cable gland is engineered for secure cable entry in marine and offshore electrical systems requiring compliance with Japanese Industrial Standards. It is specifically designed for non-armoured cable installations using PF (JIS pipe thread), ensuring compatibility with marine equipment and enclosures.
Manufactured by Xing Wei as a dedicated factory and supplier, this product supports OEM and ODM requirements for shipbuilding, port infrastructure, and offshore engineering projects. The gland structure applies compression sealing to maintain cable integrity under vibration and environmental exposure.
The available material options, including chrome-plated brass and stainless steel, provide flexibility for corrosion resistance in different marine conditions. Sealing materials such as NBR or EPDM further support durability across a wide operating temperature range.
With protection ratings ranging from IP54 to IP68, the JIS marine cable gland is suitable for applications where moisture ingress, salt exposure, and mechanical stress must be controlled within defined engineering tolerances.
Key Features
– PF (JIS pipe thread) design ensures compatibility with JIS-standard marine equipment
– Compression sealing structure supports IP54 to IP68 waterproof levels
– Marine-grade corrosion resistance with chrome-plated brass or stainless steel options
– High anti-vibration performance suitable for dynamic shipboard environments
– Wide operating temperature range from -40°C to +100°C, with short-term tolerance up to +120°C
Applications
– Shipboard electrical cable entry systems
– Offshore platform junction boxes and enclosures
– Marine control panels and distribution boards
– Port and dockside electrical infrastructure
– Industrial environments requiring JIS-standard cable connections
Product FAQ
1. What cable type is compatible with this JIS marine cable gland?
It is designed specifically for non-armoured cables.
2. What thread standard does this product use?
The gland uses PF (JIS pipe thread), aligned with JIS standards.
3. What protection ratings are available?
Standard IP54 is available, with optional IP66 and IP68 configurations.
4. What materials can be selected for different environments?
Options include chrome-plated brass and stainless steel, depending on corrosion resistance requirements.
5. What sealing materials are used?
NBR and EPDM sealing materials are available based on environmental and temperature conditions.
6. Does Xing Wei support OEM or ODM supply?
Yes, Xing Wei operates as a manufacturer and supplier supporting OEM and ODM project requirements.
