Product Overview

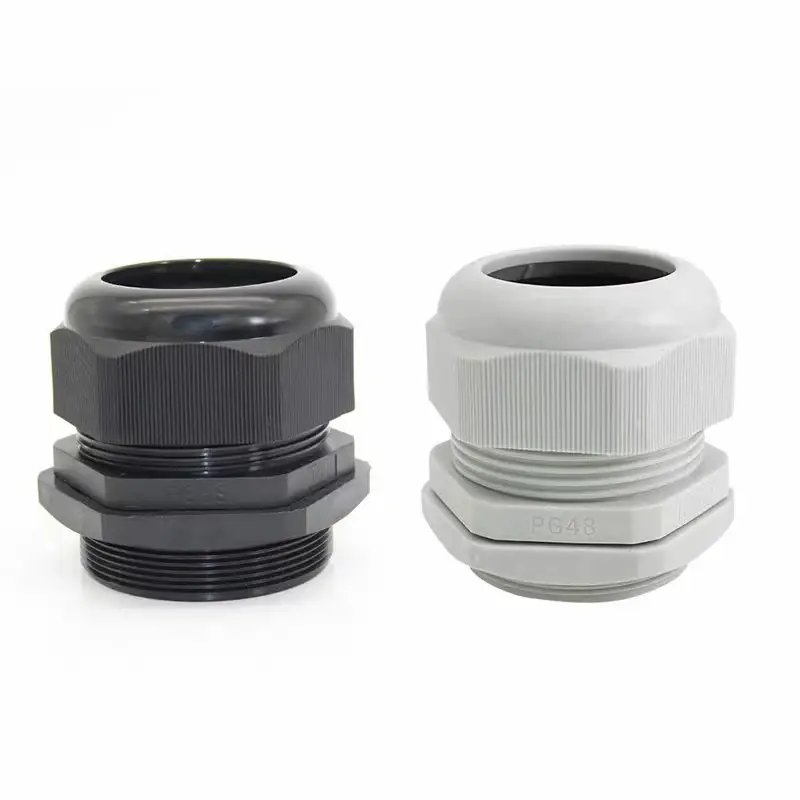

The Nylon Cable Gland is engineered to provide secure, waterproof, dustproof, and anti-corrosion cable entry for electrical enclosures, control panels, and machinery. Constructed with a UL-approved nylon body and weather-resistant EPDM rubber seals, it delivers exceptional mechanical strength and environmental protection. Certified with SGS, CE, and an IP68 protection rating, it ensures long-term durability in demanding industrial environments.
Key Features
-
Multi-Thread Compatibility: Available in Metric, PG, G (PF/BSP/PS), and NPT thread standards with custom thread options available.
-
UL-Recognized Nylon Body: Main structural parts (A.C.F components) are manufactured from high-grade nylon featuring a UL94V-2 fire retardancy rating.
-
Weather-Resistant Sealing: Equipped with EPDM rubber seals, with customizable options for cold resistance, high temperatures, acid/alkali resistance, and chemical corrosion.
-
IP68 Waterproof & Dustproof: Offers superior protection against water ingress, dust accumulation, aging, and environmental corrosion.
-
Specialized Clamping Design: Features a unique installation claw and sealing ring structure designed for secure cable retention and a wide clamping range.
-
Flexible Color Options: Standard colors include black and grey, with custom color options available upon request.
Applications
-
Industrial automation control panels and electrical distribution enclosures.
-
Outdoor lighting systems and weatherproof junction boxes.
-
Machinery manufacturing and instrumentation wiring.
-
Industrial settings requiring reliable waterproof, dust-tight, and anti-corrosive cable management.
Product FAQ
-
Q1: What thread specifications are available for this nylon cable gland?
-
It supports Metric, PG, G (PF/BSP/PS), and NPT thread standards, with custom thread options available upon request.
-
-
Q2: What is the material and fire rating of the main body?
-
The main structural components (A.C.F parts) are made of UL-recognized nylon with a fire rating of UL94V-2.
-
-
Q3: What is the operating temperature range of the gland?
-
The static operating temperature ranges from -40°C to 100°C, with short-term temperature resistance reaching up to 200°C.
-
-
Q4: Can the sealing components be customized for harsh chemical environments?
-
Yes, while standard units use EPDM weather-resistant rubber, custom seals for cold resistance, high temperatures, acid/alkali resistance, and chemical corrosion can be provided.
-
-
Q5: What are the standard colors and quality certifications?
-
Standard colors are black and grey (other colors can be custom-made), and the product holds SGS, CE, and IP68 certifications.
-
